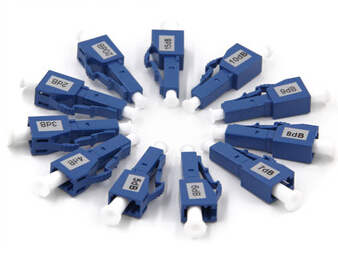

Fixed Optical Attenuator 1dB 3dB 5dB 10dB 15dB LC Attenuator Male To Female fiber optic attenutor

Name: Fixed Optical Attenuator 1dB 3dB 5dB 10dB 15dB LC Attenuator Male To Female fiber optic attenutor
Brand: Qingying or QY
Price: 1 USD

Brand Name : Qingying or QY

Model Number : LC Fiber Optic Attenuator

Certification : ISO9001-2015

Place of Origin : Dongguan China

MOQ : 50 Piece/Pieces

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Week LC 5dB Fiber Optic Attenuator

Packaging Details : Plastic box + carton / customized

Product name : LC Fiber Optic Attenuator

Connector Type : LC UPC

Attenuation accuracy : ±10%

Sleeve material : Ceramic

Operating temperature : -40~80 Degree

Color : Blue

Operating Wavelength : 1310nm~1550nm

Return Loss : PC ≥50db UPC ≥55dB APC ≥60dB

Contact Now

Fixed Optical Attenuator 1dB 3dB 5dB 10dB 15dB LC Attenuator Male To Female fiber optic attenutor

Feature:

v Good interchangeability and repeatability

v Environmentally stable

v Easy installation

v Custom designed specifications

v Low return loss

v Readily panel mountable

v Compact packing

Application :

--- LAN

--- CATV

--- FTTH

--- Fiber optic sensors

--- Testing instruments

--- Telecommunications

--- Multi-channel subscriber loop

--- Optical transmission system

--- Variable of attenuation ways and a bound of connector types

Optical Performance:

	M-F Plug Type	F-F Adaptor Type
Testing Wavelength(nm)	SM: 1310nm/1550nm	1310nm
	MM: 850nm/1300nm
Attenuation Accuracy(dB)	1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value
Return Loss(dB)	≥50dB (PC)	≥50dB (PC)
	≥60dB (APC)	≥60dB (APC)
Input Power (Max.) (mW)	300
Durability(dB)	<0.2dB Typical, 1000 Matings
Operating Temperature(°C)	-40~+80
Storage Temperature(°C)	-40~+85

Specification :

parameter		SM(9/125)		MM(50/125,62.5/125)
Attenuation values		1dB to 20dB(1dB step),25dB,30dB		1dB to 25dB(1dB step)
Wavelength		1310nm & 1550nm		850nm &1300nm
Attenuation Tolerance (dB)		1-10dB<±1.0dB ( typical ) standard		2dB,5dB,10dB<±1.0dB(typical ) standard
		11-25dB<±10% ( typical ) standard		15dB<±10% ( typical ) standard
		1-10dB<±0.5dB ( typical ) premium		2dB,5dB,10dB<±0.5dB(typical ) premium
		11-25dB<±5% ( typical ) premium		15dB<±5% ( typical ) premium
Return Loss	PC	≥45 dB		/
	UPC	≥55 dB
	APC	≥65 dB
Attenuator mode			Fixed type, male to female type, In-line type, Variable type
Operating Temperature			-40°C~+75°C
Storage Temperature			-40°C~+85°C

Resistance to high-power light source,

With light weight, small size, high accuracy, good stability, various forms, convenient characteristic.
