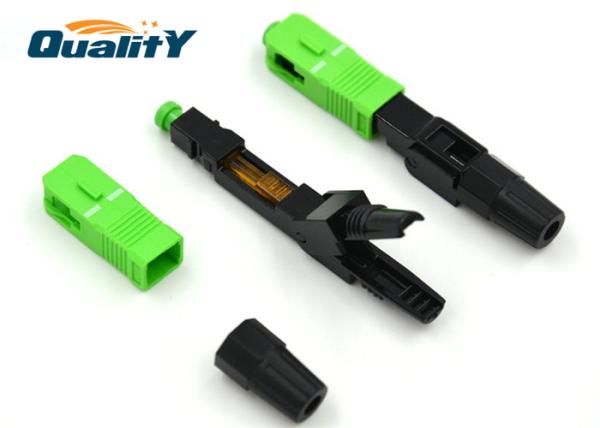

SC APC Fast Single Mode Fiber Connector For Active Termination
1.Description
The fast connector is embedded optical fiber, to ensure a controlled factory ceramic polishing face, the radius of curvature, apex offset, optical fiber end surface polishing projection height and the ceramic mass
The use of high concentricity of the ceramic ferrule embedded fiber ensures a low insertion loss and high return loss optical performance accuracy of the V-groove to be cut on site slide locking mechanism fixed to the fibers have the V-groove of the fiber core center the combination of precise fiber core with matching refractive index matching cream can guarantee quick connectors with high stability and high performance bare fiber, coating, pigtails, skin quadruple.
2.Features
1.Factory-installed fiber stub
2.Low insertion loss
3.Quick and easy fiber termination in the field .
4.Eliminates cable excess length and pigtail splicestorage
5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
3.Specification
| Fast Connector Specification |
| Mode | SM | MM |
| Polish | UPC | APC | |
| Insertion Loss | Typical ≤0.2dB
Maximum ≤0.5dB |
| Return Loss | ≥50dB | ≥55dB | ≥35dB |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB (1000 times mating) |
| Tensile Strengh | > 10kg |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
4.Application
1). CATV
2). Active device termination
3). Telecommunication networks
4). Local Area Networks (LANs)
5). Data processing networks
6). Test equipment
7). Premise installation
8). Wide Area Networks(WANs)

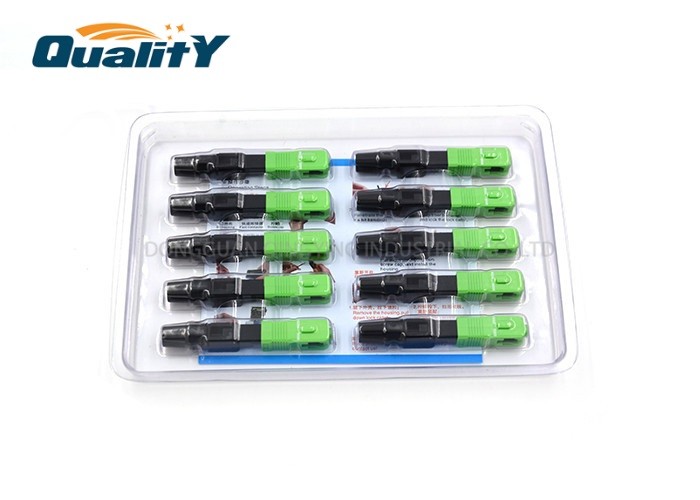

5. Packing
Optical fiber fast connector should be packed before they go out .And the packing
requirement and box mark must be meet the specification of GT/T3873-1993.
